SpeedFun RIBELLE for Yamaha PW-X, PW-SE, PW-TE 2019 and 2020

135,50

SpeedFun RIBELLE is an electronic and smart speed release device that needs no external power.

It is designed for use with YAMAHA PW-X, PW-SE and PW-TE 2019-20 motors, to circumvent the 25km/h speed limit and allow for an increase in its active assistance up to speeds that can exceed 60 kmH by exploiting the motor’s power to the full.

Vedi di più...

Category


Share

WARNING!

This device is only for 2019-20 engines. For 2017-18 engine click here.

Distinction between 2017/18 and 2019-20 engines: The two engines are the same outside but the communication system becomes encrypted from 2019. Yamaha has chosen to reverse the sex of the connectors to avoid mounting old displays on new engines where they would not work. This is also the reason why we had to produce two different versions of Rebel.

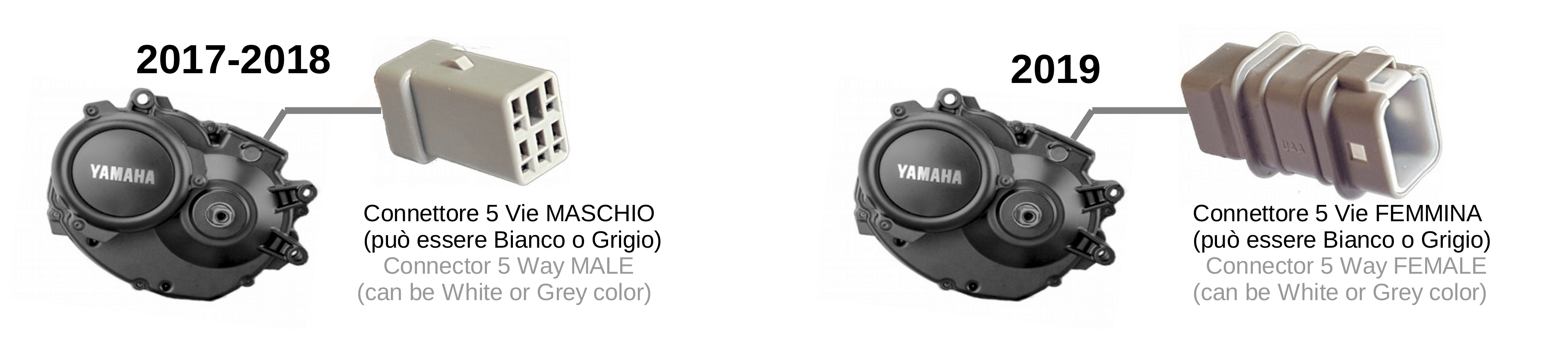

The 2019 engine is recognized because it normally mounts the “A” sideswitch and “C” displays. A unique way to distinguish it is to check the sex of the 5-way connector that connects the display (see image below).

What is SpeedFun RIBELLE?

SpeedFun RIBELLE is an electronic and smart speed release device that needs no external power.

It is designed for use with YAMAHA PW-X, PW-SE and PW-TE 2019-20 motors, to circumvent the 25 KmH speed limit and allow for an increase in its active assistance up to speeds that can exceed 60 KmH (info) by exploiting the motor’s power to the full.

SpeedFun RIBELLE always shows real speed and mileage on the display of your Ebike even with activated speed release.

SpeedFun RIBELLE is equipped with a self-learning system to store all the parameters of the ebike on which it is mounted. Therefore no setting is necessary. Only a short initial sequence and then you can only think about having fun!

Speedup RIBELLE is assembled in a very simple way interposing it between the speed sensor and the motor and between the Display and the motor using original connectors that do not alter the characteristics of electrical resistance and watertightness.

The operation system starts operating only when the 16 kmH is reached, progressively reducing with a particular algorithm the communication of the wheel revolutions to the engine without the cyclist noticing any difference in assistance. It does not intervene in any way at low speeds. This is an important precaution designed not to vary the parameters of the engine intervention at the restart and in important climbs, (which are the critical and most delicate moments for an engine) thus leaving intact the parameters studied and optimized by the manufacturer, and thus avoiding loss of power, failures or “hiccup” operations that instead occur with the release systems of other manufacturers.

SpeedFun RIBELLE can be activated and deactivated with a simple simply pressing the ebike light button. A feedback is shown on the display each time the activation or deactivation status is changed.

RIBELLE allows the millimetric setting of the wheel circumference starting from 20″ for a very precise calculation of speed and distance even if you had to replace the tire with one of different section from the original. Normally this possibility is not offered by the original Yamaha system.

ATTENTION, Rebel is installable with the following limitations:

1: Can not be mounted on Haibike models with E: I-Shock electronic shock absorber system

2: Not suitable for Yamaha Sinc Drive engines mounted on Giant bicycles (available here)

3. It is not suitable for Yamaha PW-X and PW-SE 2017/18 engines with display x (available here)



The main features

– Totally INVISIBLE

– Does not alter speed and distances on the display

– It can be dismantled and reassembled at any time

– It does not need any destructive modification to the original parts of the bicycle

– It allows to reach speeds with assistance activated even over 60 kmH (info)

– Installable in a few minutes, ready to use, plug and go!

– Suitable for Yamaha PW-X and PW-SE engines 2019-20

– Activated and deactivated by means of a sequence of keys

– Auto-learns the parameters of the ebike, memorizes and maintains the desired settings

– Internal firmware upgradeable to any new algorithms developed by the SpeedFun team. (It is necessary to send the device)





Video Assembly Instructions




This site uses cookies to enhance your experience. By continuing to the site you accept their use. More info in our cookies policy.     ACCEPT

ATTENTION, IMPORTANT NOTICE
Once the SpeedFun speed release device has been installed, the electric bicycle, being over the limit of 25 kmH, is equated to a moped and as such, if it circulates in public places, requires the homologation-registration by the Civil Motorization, it is subject to payment of road tax and insurance coverage, must have a license plate, cannot travel on cycle paths and the driver is obliged to drive with a license and must wear a helmet. Furthermore, driving a motor bike equivalent to a moped that does not comply with the aforementioned provisions involves the administrative seizure of the vehicle and fines that vary according to the infringement committed.
The manufacturer of the speed release system accepts no responsibility for any damage caused to the pedal assisted bicycles on which the device is mounted as well as to direct or indirect damage to people or things.
Please note that changing the bicycle invalidates the manufacturer’s warranty.

EBIKE SOFTWARE COMPATIBLE WITH SPEEDUP DEVICES
The operation of the SpeedFun devices is guaranteed for the software versions of the ebikes released up to the date of purchase of the device itself.
If the ebike is subsequently updated with software for which the SpeedFun device has not been tested, it may fail to work and SpeedFun does not respond with the guarantee.
Before updating your engine it is necessary to check the compatibility with your SpeedFun device.

ABOUT ANTI-TUNING DEFENSES:
SpeedFun – Phase B snc disclaims any responsibility for any anomalies or engine blocks caused by the anti-tuning defenses that the engine manufacturers could activate.

NB: All the brands mentioned on this site are named exclusively to identify the models of engines and bicycles on which our devices are compatible. They are the property of the respective owners and are in no way related to our company.

Use your helmet, save your life!
