SpeedFun Furious Evo for Ananda M100 and M81

119,07VAT incl.

SpeedFun Furious Evo is an ebike tuning that allows you to remove the 25 kmH speed block by fully exploiting the potential of the Ananda motor.

It is designed for Ananda M100 and M81 motors mostly installed on Olympia e-bikes with the wording “tuned by Olympia” to circumvent the speed block at 25 kmH allowing to increase the active assistance up to speeds that can reach 50 KmH taking full advantage of the motor potential.

All SpeedFun Furious Evo speed release devices can be activated and deactivated at any time and without the need for connections to the light output.

Vedi di più...


SKU FU_EVO_M100_M81 Category


Share

What is Ananda M100 and M81 SpeedFun Furious Evo ebike tuning?

The function of the Furious Evo tuning device for Ananda M100 and M81 is to electronically manipulate the rotation speed of the rear wheel and to communicate to the motor a speed always lower than 25 KmH in order to obtain a real speed with very high active motor. The maximum speed limit will therefore be dictated by the power of the engine added to the power expressed by one’s legs (info).

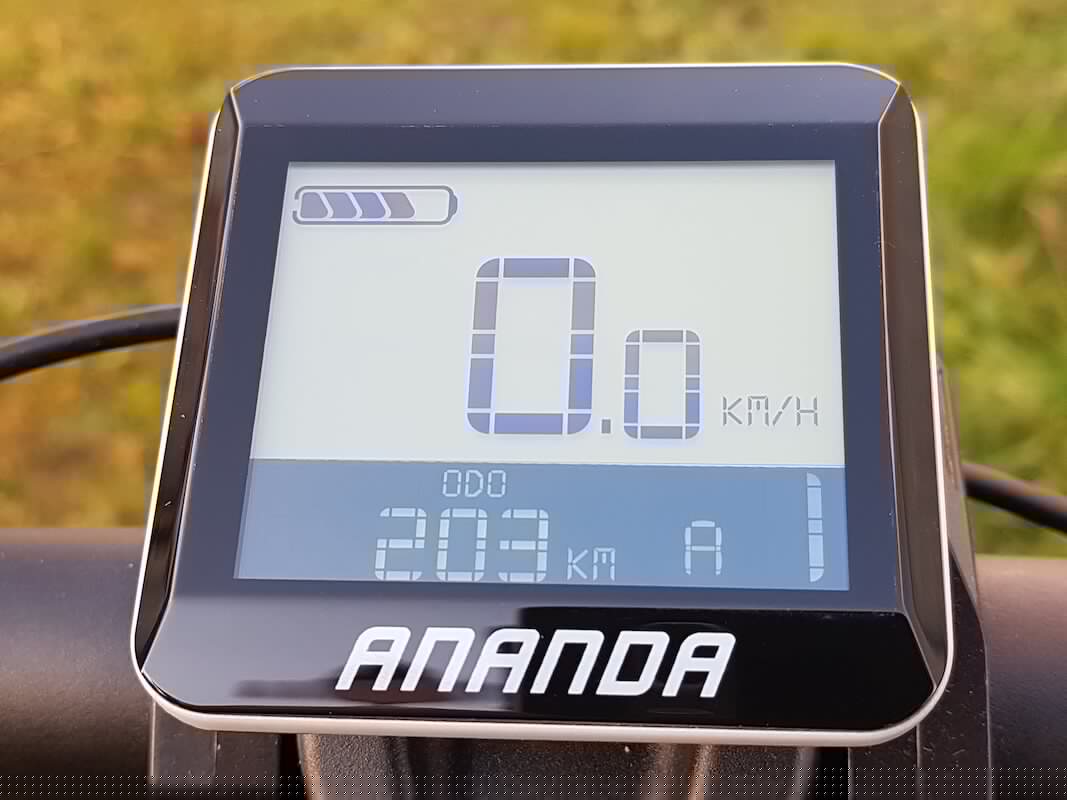

When the tuning device is active, having no communication with the display, it will show the halved data on the display starting from a certain threshold.

Speedup Furious Evo can be activated and deactivated at will and maintains the setting even after the ebike is turned off. It can be installed on ebike with Ananda M100 e Ananda M81 motors mostly mounted on Olympia ebikes (in this case often with the words “Tuned by Olympia”) regardless of the type of display or side control of the ebike.

The Furiosu Evo tuning device for Ananda M1o0 and M81 can be activated/deactivated by simply pressing the ebike’s light button. If the ebike already has the lights connected to the light output, or if it is not possible to use it, it will still be possible to activate/deactivate the tuning with a very practical system (for more information see the instructions here). The device is supplied plug and go ready to use and is installed in a very simple way thanks to the original connectors with which no physical modification of the ebike is necessary.



Ebike with Ananda M100 tuned by Olympia (110Nm) e M81 tuned by Olympia (100Nm) motors where the Furious Evo device was successfully installed

(this list is illustrative and not exhaustive)

Ananda M100 tuned by Olympia

– Olympia EX 900 and EX 900 Prime
– Olympia Performer 900 and Performer 900 Prime
– Olympia Mistral 900 X and Mistral 900 GT

Ananda M81 tuned by Olympia (100Nm)

– Olympia EX 900 Trail
– Olympia Master 630 29″ or Master 630 26″
– Olympia Explorer 630
– Olympia Super Magnum man and Super Magnum comfort

Altre ebike M100/M81

– Nakamura Crossover XV
– Puch E-Modern N7



The main features

– Totally invisible

– It can be assembled/disassembled at any time

– Equipped with original connectors that do not require any physical modification to the ebike wiring

– Allows you to remove the 25 KmH limit up to unlimited speeds (info)

– Installable in a few minutes, ready to use, plug and go!

– Suitable for Ananda M100 and M81 motors mostly mounted on Olympia ebikes

– Compatible with any type of display or command

– It is possible to activate/deactivate the device by pressing the lights button. If the light output is occupied, it can still be activated/deactivated in a very practical way (more info here)

– It does not need external batteries or power



Assembly and use instructions


Additional information
Support:

Increase assistance up to over 60 km/h

Display data:

Shows real data up to 20 km/h. Beyond 20 Km/h the data are distorted on the display or on the app

Motor compatibility:

Compatible with Ananda M100 and M81 engines often mounted by Olympia with the words "tuned by Olympia"

Activation/Deactivation:

Activation and deactivation of the device with the lights button or idle pedaling (for more information see instructions)

Dimensions:

The device measures 31 x 16.5 x 7 mm

You may also like…


This site uses cookies to enhance your experience. By continuing to the site you accept their use. More info in our cookies policy.     ACCEPT

ATTENTION, IMPORTANT NOTICE
Once the SpeedFun speed release device has been installed, the electric bicycle, if exceeding the limit of 25 kmH, is equated to a moped and as such, if traveling in public places, it needs to be homologated-registered by the Civil Motorization. subject to the payment of the road tax and insurance coverage, must have a license plate, cannot circulate on cycle paths and the driver is obliged to drive with a license and must use a helmet. In addition, driving a motor bicycle equivalent to a moped that does not comply with the aforementioned provisions entails the administrative seizure of the vehicle and financial penalties that vary according to the infringement committed. The manufacturer of the speed release system declines all responsibility for any damage caused to pedal-assisted bicycles on which the device is mounted as well as direct or indirect damage to people or things.
SpeedFun – Phase B snc declines any responsibility for any anomalies caused by the anti-tuning defenses that the engine manufacturers could activate.
Remember that the modification to the bicycle could invalidate the manufacturer’s warranty.

EBIKE SOFTWARE COMPATIBLE WITH SPEEDFUN DEVICES
The operation of the SpeedFun devices is guaranteed for the software versions of the ebikes released up to the date of purchase of the device itself.
If the ebike is subsequently updated with software for which the SpeedFun device has not been designed, its failure may occur.
Before updating your engine, it is necessary to check the compatibility with your SpeedFun device.

NB: All the brands mentioned on this site are named exclusively to identify the models of engines and bicycles on which our devices are compatible. They are the property of the respective owners and are in no way related to our company.

Use your helmet, save your life!
